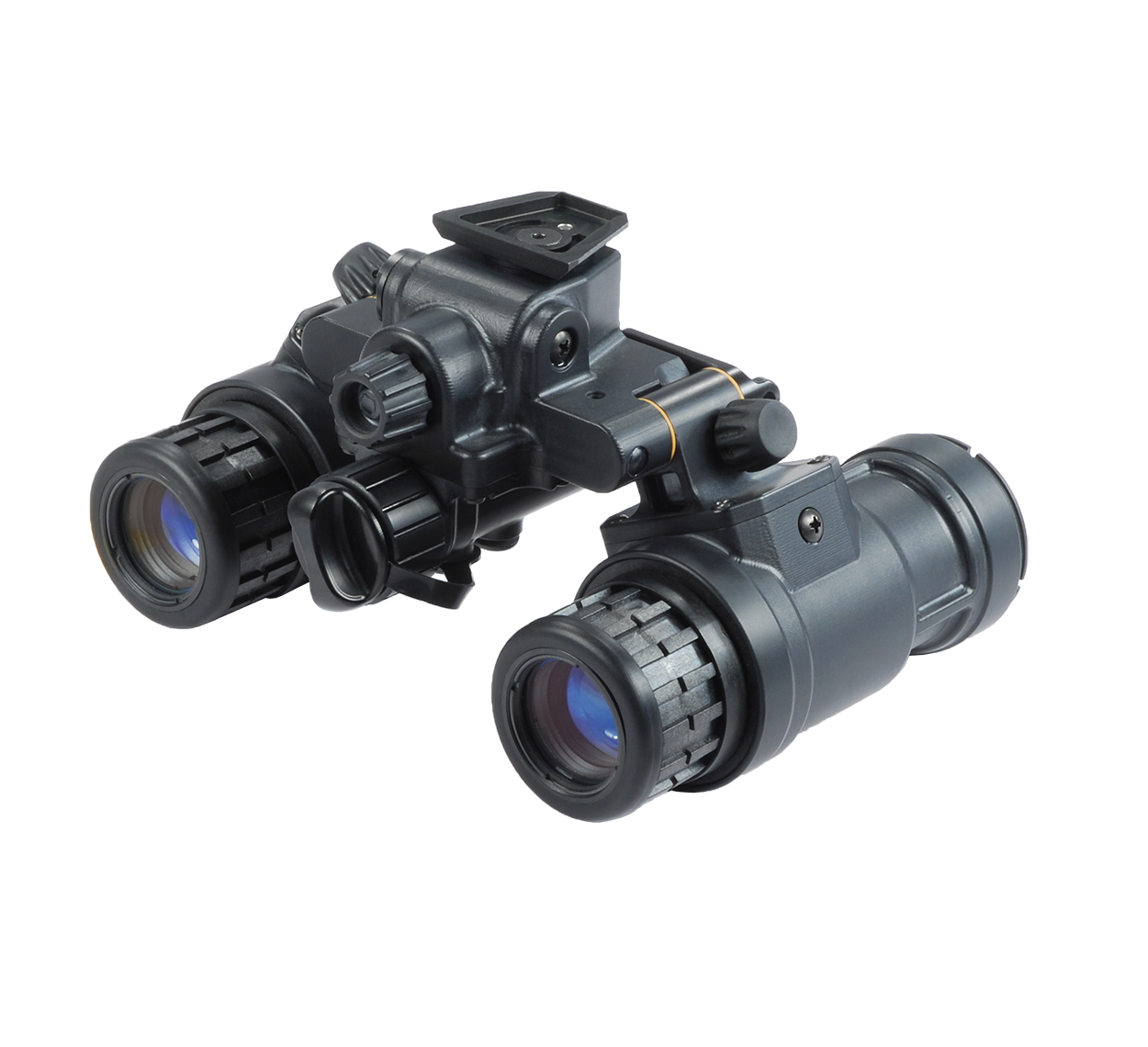

L3HARRIS BNVD AN/PVS-31A – L3 FILMLESS WHITE PHOSPHOR

L3Harris BNVD AN/PVS-31A – L3 Filmless White Phosphor

The L3Harris BNVD AN/PVS-31A is a high-performance night vision device that delivers exceptional image quality with advanced features. Equipped with L3Harris filmless white phosphor tubes, the AN/PVS-31A offers superior clarity and resolution, making it ideal for tactical operations. The lightweight, ergonomic design reduces head-borne weight and minimizes neck strain, ensuring comfort during prolonged use.

Key Features:

• Manual System Gain & Focus Adjustments: Allow for custom image quality optimization based on operator preferences.
• Lightweight Ergonomic Design: Reduces head-borne weight, minimizing neck strain for extended wear.
• Optional Diopter Lenses: Tailor the device to individual visual acuity needs for improved clarity.
• Rotating Binocular Design: When stowed, it provides a low-profile storage position against a helmet and can be used as a single monocular.
• Compatibility with Dovetail Helmet Mounts: Works seamlessly with currently fielded helmet mounts for ease of use.
• Auto OFF Function: Automatically powers down when stowed, resuming operation when deployed.
• Battery Life Indicator: LED indicators within each monocular notify the operator when the battery life drops to 10 minutes or less.
• Replaceable/Upgradeable I2 Tube Assemblies: Ensures longevity and adaptability as technology advances.

Specifications:

• Manufacturer: L3Harris Technologies
• Dimensions: 4.2” (L) x 4.2” (W) x 3.4” (H)
• Weight: 0.99 lbs (with battery)
• Finish: Matte Black, Corrosion-Resistant
• Power: One (1) AA Battery (On-Board) or Four (4) AA Batteries (Remote)
• Battery Life: >15 Hours (Single Battery) or >50 Hours (Four Batteries)
• Waterproof: 66′ for 2 hours
• Warranty: 1-Year L3Harris Warranty

Optical Characteristics:

• Generation: Gen 3 U.S. L3Harris
• Tube: 18mm MX-11769 Variable Gain
• Minimum Figure of Merit (SNR x LP/MM): 2376 FOM
• Film: Filmless
• Gate: Auto
• Gain: Adjustable/Variable
• Magnification: 1x
• Field of View (FOV): 40º
• Objective Focus: 18in to Infinity
• Diopter: 0.5 Standard

Includes:

• AN/PVS-31A BNVD Goggle
• Padded MOLLE Carry Pouch
• Rubber Eye Cups
• Sacrificial Windows
• Wilcox Amber Filters
• Remote Battery Pack
• Remote Power Cable
• Anti-Fog Wipes
• Lens Covers
• Operator’s Manual

The L3Harris BNVD AN/PVS-31A is a versatile, rugged, and high-performing night vision solution. It offers unmatched performance in low-light conditions, whether on the battlefield or in tactical operations.
