L3HARRIS BNVD 1531 – L3 FILMLESS WHITE PHOSPHOR

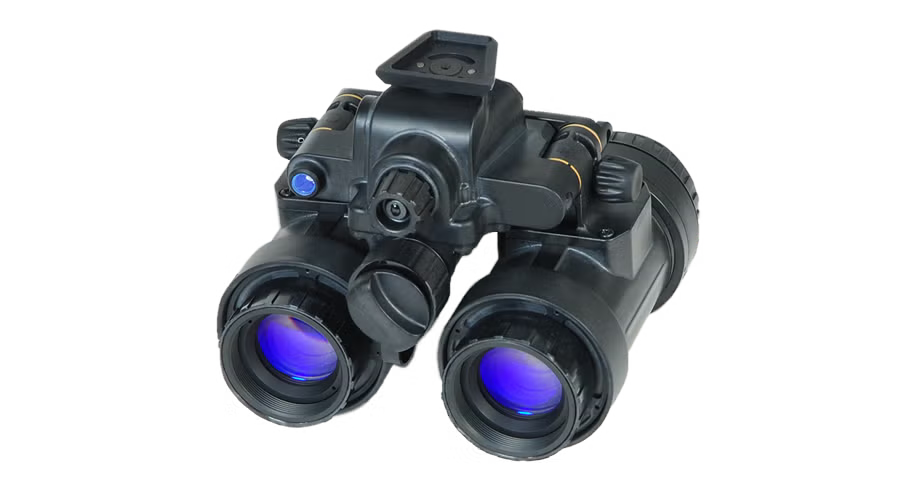

L3Harris BNVD-1531 – L3 Filmless White Phosphor

The L3Harris BNVD-1531 is a cutting-edge BNVD night vision system featuring L3 filmless white phosphor technology, providing enhanced image clarity and contrast. This advanced night vision device offers exceptional detail in low-light conditions, with a wider range of shades for accurate identification and situational awareness. Designed for tactical and operational excellence, the BNVD-1531 combines ergonomic comfort, customizable settings, and durability to meet the needs of professionals in demanding environments.

Key Features:

• Gen III I2 Tubes with Auto-Gated Technology: Prevents damage in high-light environments, ensuring reliable operation across varying lighting conditions.
• High-Performance White Phosphor Image: Offers superior contrast and detail, enhancing the operator’s ability to acquire and assess targets accurately.
• Manual Gain & Focus Adjustments: Allows users to fine-tune image quality to suit specific operational needs.
• Lightweight Ergonomic Design: Reduces head-borne weight and minimizes neck strain for comfort during extended use.
• Adjustable Diopter Eyepieces: Enables use by operators with different visual acuity for clear vision.
• Integrated Infrared Illuminator: Provides additional illumination for map reading or close-quarters tasks.
• Rotating Binocular Design: Stows in a low-profile position against the helmet for convenience, and can be used as a single monocular if preferred.
• Compatibility with Dovetail Helmet Mounts: Works seamlessly with currently fielded helmet mounts for added flexibility.
• Auto OFF/ON Functionality: Automatically powers off when stowed and resumes operation when deployed.
• Battery Life Indicator: LED indicators in both monoculars alert the operator when 10 minutes or less of battery life remains.
• Replaceable/Upgradeable I2 Tube Assemblies: Ensures the device remains functional as technology evolves.

Specifications:

• Manufacturer: L3Harris Technologies
• Dimensions: 4.2″ (L) x 4.2″ (W) x 3.4″ (H)
• Weight: 19 ounces (with battery)
• Finish: Matte Black, Corrosion-Resistant
• Power: One (1) AA Battery (On-Board), or Four (4) AA Batteries (Remote)
• Battery Life: >15 Hours (Single Battery), or >50 Hours (Four Batteries)
• Waterproof: 66′ for 2 Hours
• Warranty: 1-Year Warranty through L3Harris

Optical Characteristics:

• Generation: Gen 3
• Tube: L3Harris 11769 Type
• Figure of Merit (FOM): 2376+ Minimum
• Film: Filmless
• Gate: Auto
• Gain Control: Adjustable/Variable
• Magnification: 1X
• Field of View (FOV): 40º
• Objective Focus: 18in to Infinity
• Diopter: Adjustable +4 to -6

Includes:

• BNVD-1531 Goggle
• Padded MOLLE Carry Pouch
• Rubber Eye Cups
• Sacrificial Windows
• Lens Covers
• Operator’s Manual

Full Kit Includes:

• Remote Battery Pack
• Remote Power Cable

The L3Harris BNVD-1531 is a premium 1531 night vision system that delivers superior optical performance and operational flexibility, making it an ideal choice for tactical missions, reconnaissance, and other critical applications.
