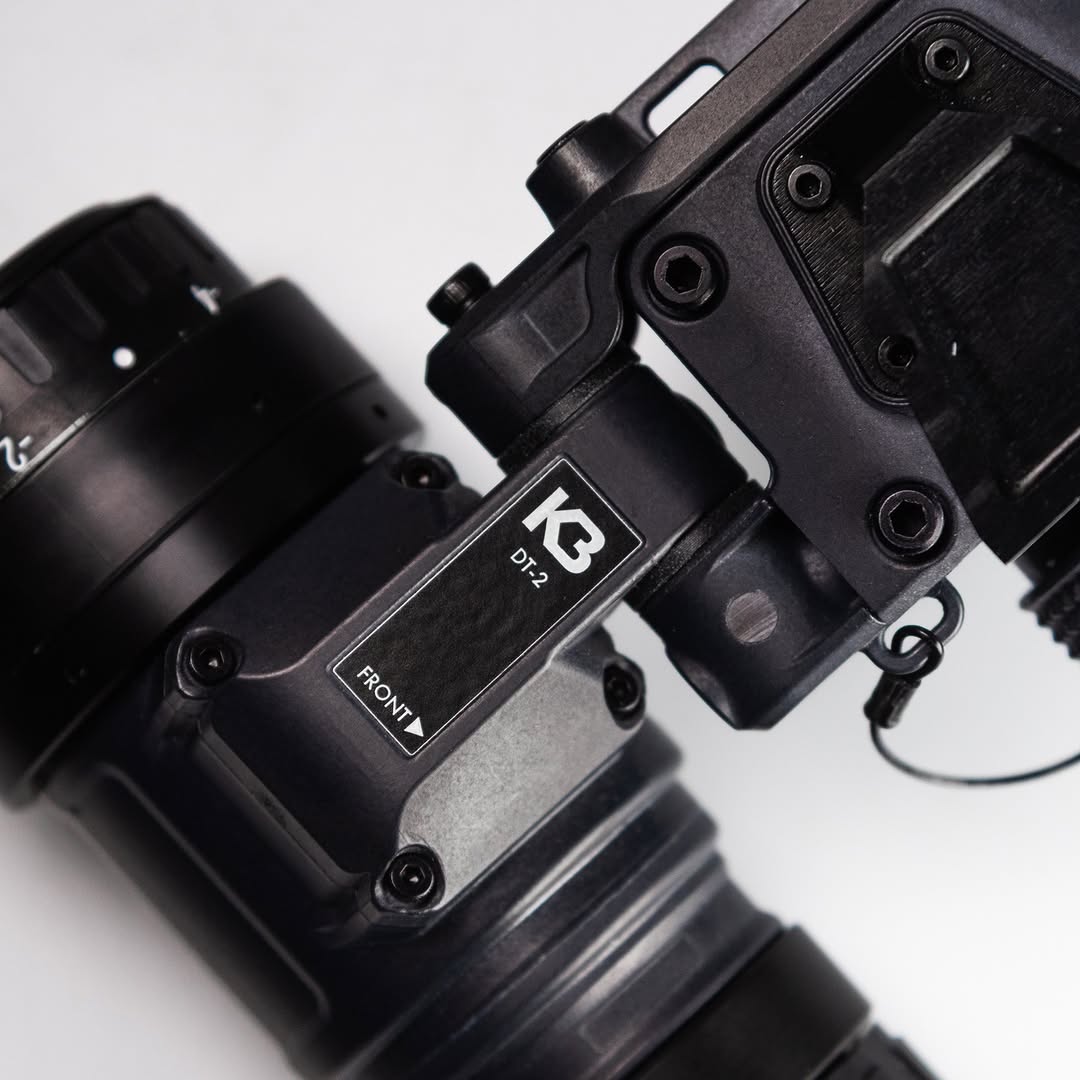

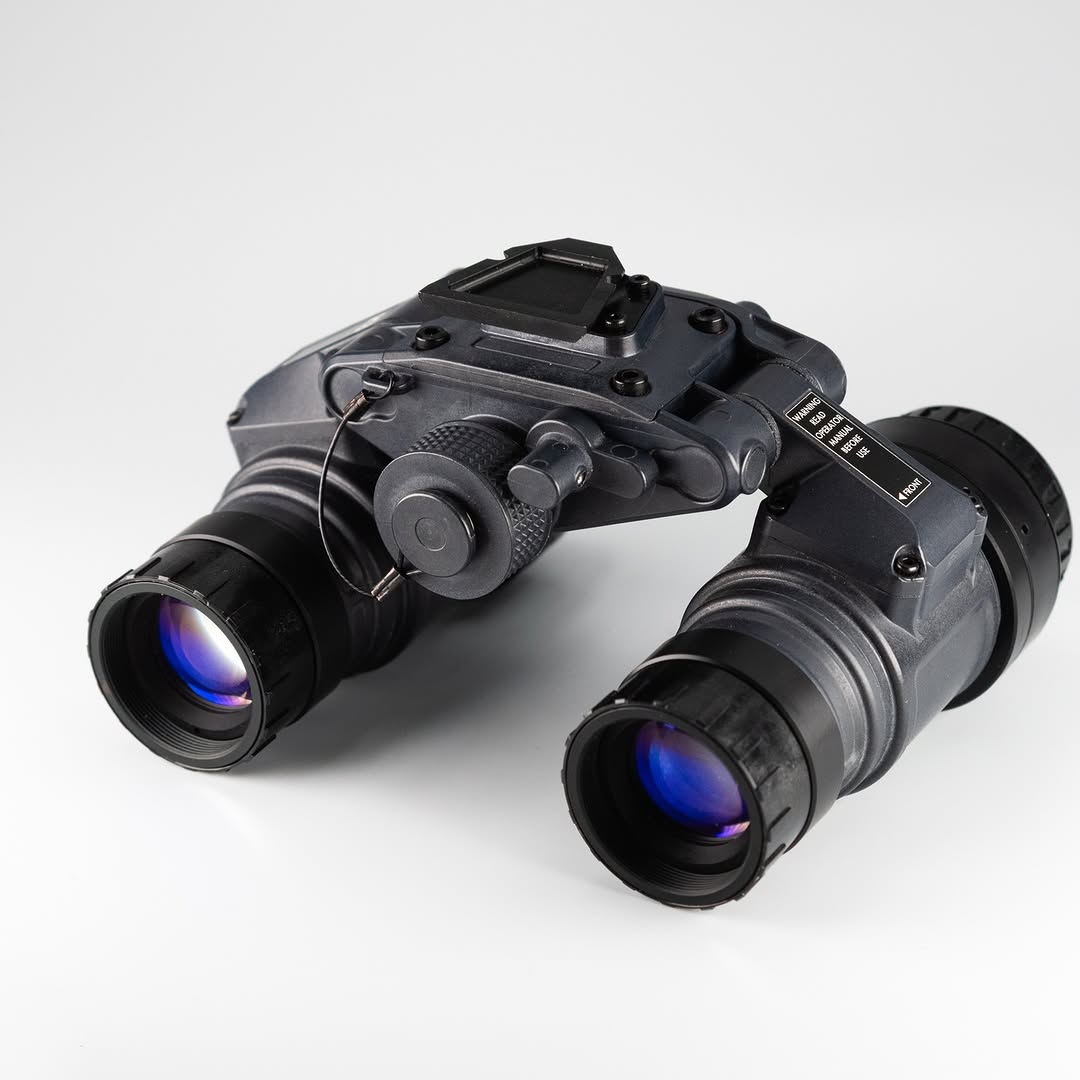

Kauffmann-Bremin DT-2 Housing

The Kauffmann-Bremin DT-2 is the latest polymer-based housing from the original designer of the DTNVG. Engineered as a lightweight, rugged, and highly serviceable binocular platform, the DT-2 is the spiritual successor to the original DTNVG—refined for simplicity and durability.

Made in Europe from high-density injection molded polymers, the DT-2 offers straightforward controls, improved serviceability, and a compact, low-profile design that makes it an ideal choice for end-users and builders alike.

Key Features

• Individual Pod Shut-off when rolled out of view

• Auto-Off on Vertical Stow

• Two-Position Paddle Switch for easy glove-friendly operation

• Accepts 1x CR123A Battery with 20–25+ hours runtime

• Low Battery Indicator in eyepiece (~30 min warning)

• Friction-Lock IPD Stops (pods return to same position each time)


• Ultra-Low Pod Stowage Angle via angled arm design

• Built-in Aluminium Dovetail Mount

• Exceeds MIL-STD-810G/H & NATO 1.5m Drop Test Standards

• Waterproof & Dustproof to 1.5m / Exceeds IP68 rating

Technical Specifications

• Material: High Density Injection Molded Polymer

• Tube Type: 2-Contact MX-10160 IIT

• Weight: 355g (housing only, without optics or battery)

• Battery Type: 1x CR123A

• Runtime: ~25 hours @ 18°C (65°F)

• Field of View: 40° (standard optics) / 50° (with wide-FOV optics)

• Diopter Adjustment: +2 to -6 (depends on optics chosen)

• Impact Rating: MIL-STD-810H

• Water Immersion: Rated up to 18m for 2 hours

• Operating Temp: -30°C to +50°C

• Storage Temp: -50°C to +70°C

• Auto Functions: Auto-off on stow, pod shut-off on roll-out

What’s Included

• KB DT-2 Housing Only

• NVG Storage Caps

• Operator’s Manual LLC Pro Case

• 10-Year Operator’s Manual LLC Warranty

• User Manual

Built & Tested by Operator’s Manual LLC

Each housing is built to strict ISO5 clean room standards and tested for environmental resilience and reliability. With its straightforward controls and rugged design, the DT-2 Housing is the ideal foundation for your custom night vision build.
